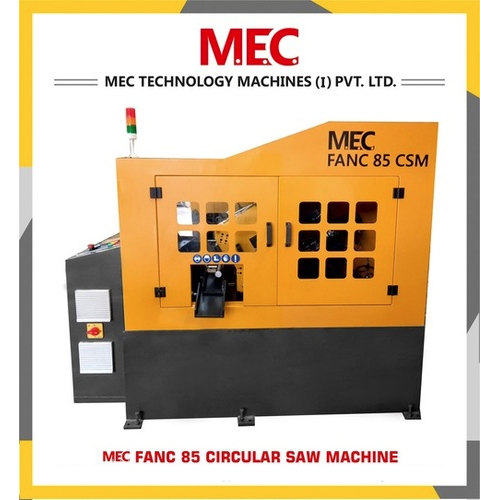

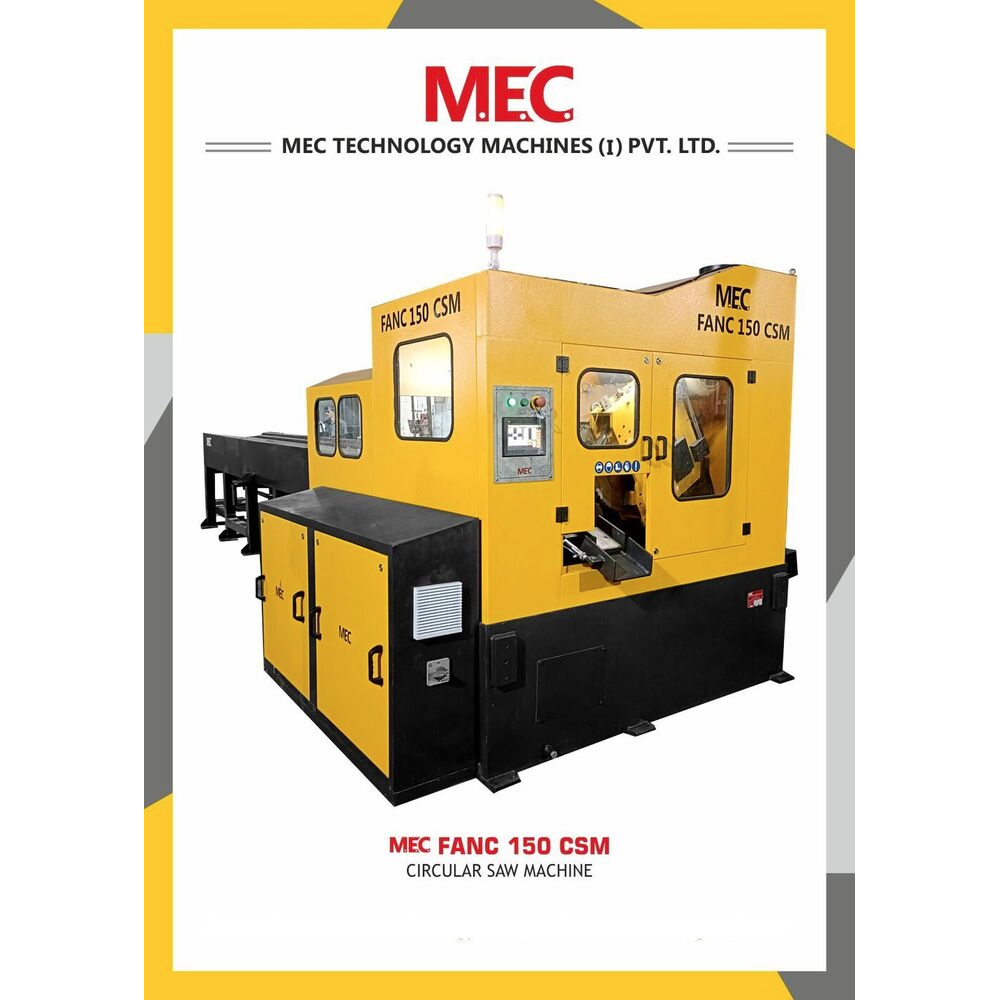

Circular Saw Machine - Metal Cutting

Get a Price/Quote

MOQ : 1 Piece

Circular Saw Machine - Metal Cutting Specification

Product Type
Automatic

General Use
Industrial

Material
Steel

Type
Hydraulic Cutting Machine, Metal Cutting Machine, Automatic Cutting Machine, Bar Cutting Machine

Capacity
20 Ton/day

Weight (kg)
3500 Kilograms (kg)

Computerized
Yes

Automatic
Yes

Control System
PLC Control

Cutting Speed
20-80 m/m

Cutting Thickness
1.6 Millimeter (mm)

Cutting Function
Full Automatic

BladeSize
320

Cooling System
Water Chiller

Drive Type
Electric

Voltage
415 Volt (v)

Dimension (L*W*H)
2100 x 2100 x 2300 Millimeter (mm)

Feature
Low Noise, Automatic Feeding, Good Quality, High Efficiency, Low Energy Consumption, Environmental Friendly, High Torque

Color
Gray

Warranty
1 Year

Circular Saw Machine - Metal Cutting Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Nhava Sheva, India

Payment Terms
Letter of Credit (L/C), Cash Against Delivery (CAD), Letter of Credit at Sight (Sight L/C), Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
3 Pieces Per Month

Delivery Time
4-6 Week

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
ON WOODEN PALATE

Main Domestic Market
All India

Certifications
NSIC, ISO

About Circular Saw Machine - Metal Cutting

Torsion free construction of Heavy duty Fabricated Structure of Machine.
Infinitely variable controlled cutting feed.
Cutting feed through Ball Screw Servo motor and VFD for Variable cutting speed.
Rapid approach (reference) movement of Cutting Head by Ball Screw Servo motor.
Indexing of job through Ball Screw Servo motor arrangement.
Auto return of cutting head after completion of cut.
Auto and manual mode for cycle sequence.
Hydraulic Operated job clamping horizontal Vice.
Heavy duty reduction Gearbox for heavy cutting torque directly coupled to main saw motor
mounted on linear guide ways for vibration free cutting to optimize cutter life & production.
Inbuilt micro mist cooling arrangement.
Separate Hydraulic Power pack with all control valves, gauges & Oil level Indicator for easy
check & maintenance.
Electrical Control Panel with quality switchgears.
The saw motor speed is controlled with A.C. frequency drive.
Driven brush for cleaning of chips from circular blades.
Automatic trim Cut enable option.
Saw Blade guided by two Carbide pads on both sides.
Cut of length measured by PLC using Servo Drive arrangement.
PLC Control system with Touch Screen HMI.
Motorized Chip conveyor system for chips removal.

Product details

Cutting Blade Size	285
Brand	MEC
Warranty	1 Year
Automatic Chip Conveyor	Yes
Cooling Type	Mist Unit
Power	15 HP
Motor Rotation Speed	1440
Hydraulic Pump Motor	2 HP
Machine Weight	3200 kg
Loading Table	Automatic
Square Cutting	45
I Deal In	New Only
Rectangle Cutting	45
Automation Grade	Automatic
Machine Type	Fully Automatic
Voltage	415V
Current	16Amp
Handle Style	Automatic
Surface Treatment	Painting
Round Cutting	70 mm
Blade Speed	145m/m
Weight	3450 kg
Capacity	70 mm
Usage/Application	Industrial
Model Name/Number	70FANC

State-of-the-Art Automatic Cutting Technology

This Circular Saw Machine employs advanced PLC and CNC technologies to achieve fully automatic, computerized metal cutting. The precise control offered by the system, combined with automatic feeding, greatly boosts productivity while maintaining consistent quality standards, making it suitable for a variety of industrial applications requiring large-scale steel cutting.

Exceptional Performance and Efficiency

With a powerful electric drive system and hydraulic cutting mechanism, the machine can process up to 20 tons of steel per day. Its adjustable cutting speeds and high-torque design ensure efficient performance even under demanding workloads. The integrated water chiller system maintains optimal temperatures for extended, continuous operation.

Designed for Reliability and Operator Comfort

Engineered for operational safety and long-term reliability, this metal cutting machine runs with low noise and energy consumption. Features such as automatic feeding, environmental friendliness, and high-cutting accuracy reduce manual intervention, improving workplace safety and comfort for operators.

FAQ's of Circular Saw Machine - Metal Cutting:

Q: How does the PLC control system enhance the operation of the circular saw machine?

A: The PLC (Programmable Logic Controller) control system automates and monitors the cutting process. It ensures precise and consistent operation, reducing human error, and allows easy adjustment of cutting parameters for different metal types or thicknesses.

Q: What materials and thicknesses can this machine cut efficiently?

A: This machine is specifically designed for industrial steel cutting and can handle pieces up to 1.6 mm in thickness. Its robust design and high-torque operation make it suitable for various steel bars and profiles.

Q: When should the water chiller cooling system be utilized during operation?

A: The water chiller cooling system should be used whenever the machine is in operation, especially during extended cutting sessions, to maintain optimal blade temperature and prevent overheating, which prolongs blade life and ensures consistent cutting quality.

Q: Where is this circular saw machine ideally used?

A: Ideal for heavy industrial environments, this machine is commonly utilized by manufacturers, exporters, service providers, and suppliers dealing with large-scale metal fabrication and bar cutting operations.

Q: What is the process for operating this automatic cutting machine?

A: Operation involves loading the steel bars, setting the required parameters via the PLC interface, and starting the machine. The automatic feeding and CNC control handle the cutting process, while the water chiller keeps the system cooled throughout the operation.

Q: What are the main benefits of choosing this circular saw machine for metal cutting?

A: Key benefits include high cutting efficiency, precise cuts, reduced manual labor, low operational noise, minimal energy consumption, and a user-friendly, environmentally conscious design-making it a cost-effective and reliable choice for industrial use.
