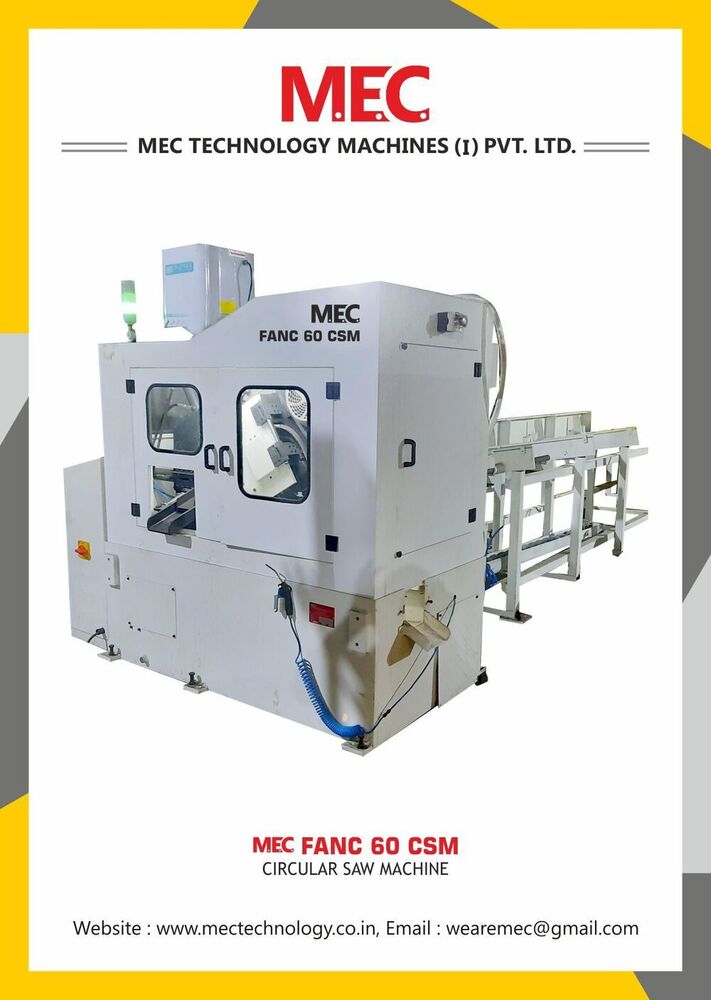

Circular Saw Cutting Machine - FANC 60 CSM

About Circular Saw Cutting Machine - FANC 60 CSM

Features -

1. Torsion free construction of Heavy duty Fabricated Structure of Machine.
2. Infinitely variable controlled cutting feed.
3. Cutting feed through Ball Screw Servo motor and VFD for Variable cutting speed.
4. Rapid approach (reference) movement of Cutting Head by Ball Screw Servo motor.
5. Indexing of job through Ball Screw Servo motor arrangement.
6. Auto return of cutting head after completion of cut.
7. Auto and manual mode for cycle sequence.
8. Hydraulic Operated job clamping horizontal Vice.
9. Heavy duty reduction Gearbox for heavy cutting torque directly coupled to main saw motor
10. Mounted on linear guide ways for vibration free cutting to optimize cutter life & production.
11. Inbuilt micro mist cooling arrangement.
12. Separate Hydraulic Power pack with all control valves,gauges & Oil level Indicator for easy heck & maintenance.
13. Electrical Control Panel with quality switch gears.
14. The saw motor speed is controlled with A.C. frequency drive.
15. Driven brush for cleaning of chips from circular blades.
16. Automatic trim Cut enable option.
17. Saw Blade guided by double Carbide pads on both sides.
18. Cut of length measured by PLC using Servo Drive arrangement.
19. PLC Control system with Touch Screen HMI.
20. Motorized Chip conveyor system for chips removal.
